OMAC / FW1350-D
01 / 03
HONEYCOMB PAPER MACHINES
FW1350-D
(With Cutter)

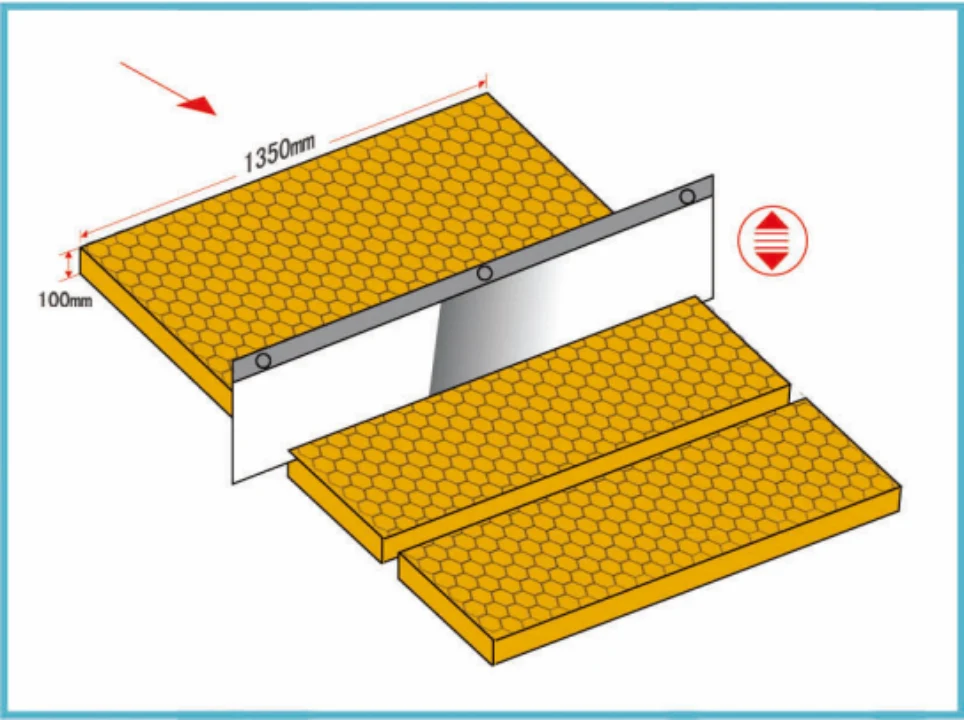

Stretch, dry and cut honeycomb paper core to length for panel furniture production.
The Max.Stretching Width1350mm
The Max.Stretching Thickness100mm
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for FW1350-D Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications FW1350-D
| The Max.Stretching Width | 1350mm |
|---|---|
| The Max.Stretching Thickness | 100mm |
| Heating Tube Power | 18KW |
| Feeding Speed | 0-10m/min |
| Drying Capacity | 0-8m/min |
| Cutter width | 1450mm |
| Overall dimensions(mm) | 3170 x 1800 x 1375mm |
Application & machine details
Application scope:Stretching, drying and cutting to length for the honeycomb paper core which filled with the panel furniture
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
