AUTOMATIC EDGE BANDERS

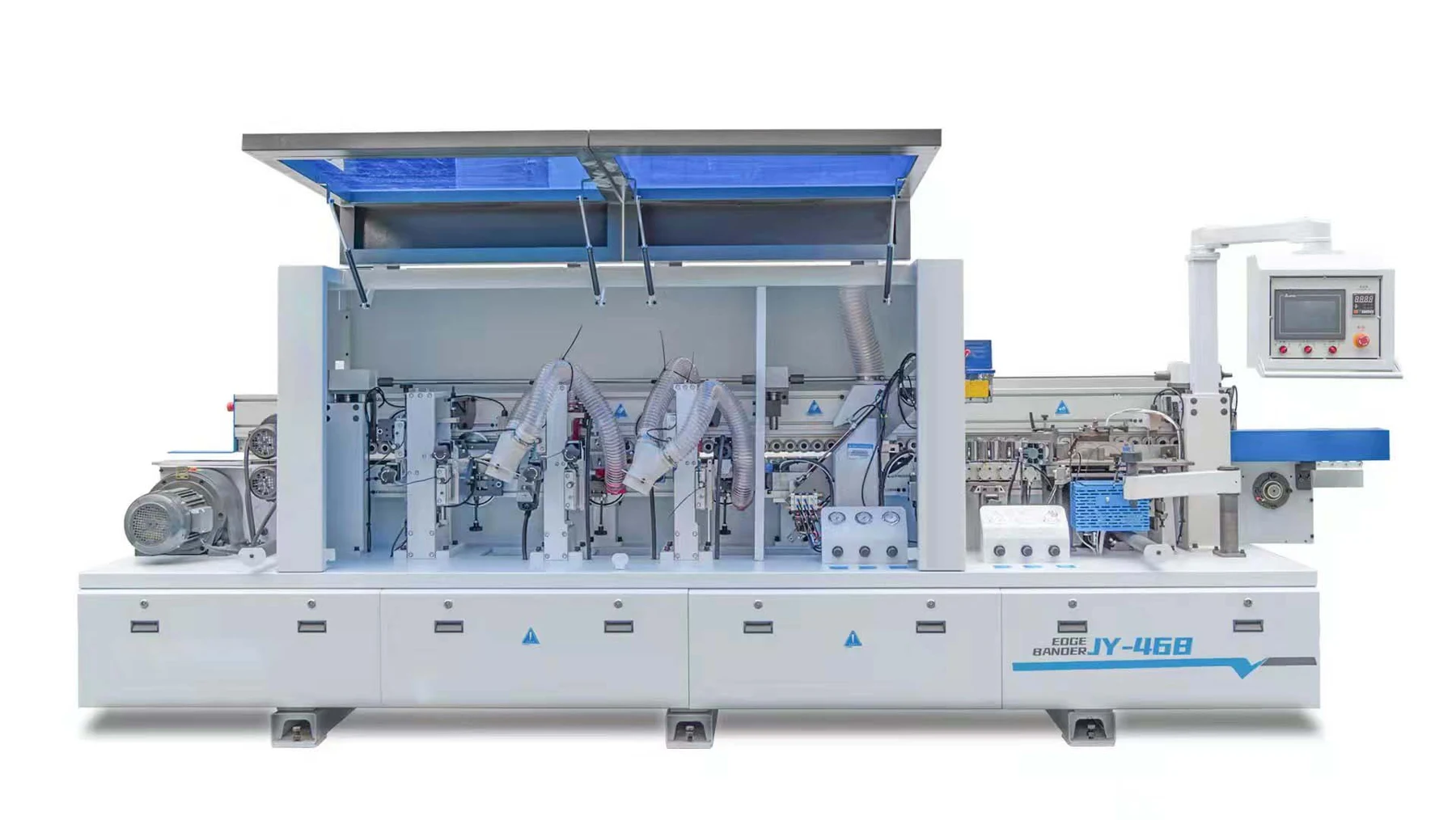

JY-468
Automatic Edge Banding Machine
Automatic edge banding for panel furniture, supporting 0.4–3 mm edge banding and 10–60 mm panels.
Feed speed14-20-23m/min
Panel thickness10-60mm
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for JY-468 Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications JY-468
| Total Power | 11KW |
|---|---|
| Feeding Speed | 14-20-23m/min |
| Edge Banding Thickness | 0.4-3mm |
| Panel Thickness | 10-60mm |
| Panel Length | ≥120mm |
| Panel Width | ≥35mm |
| Working Pressure | 0.6Mpa |
| Overall Dimension | 4500 x900 x 1600mm |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
EXPLORE YOUR OPTIONS
All automatic edge banders More ways to move forward.
PANEL EDGE FINISHING

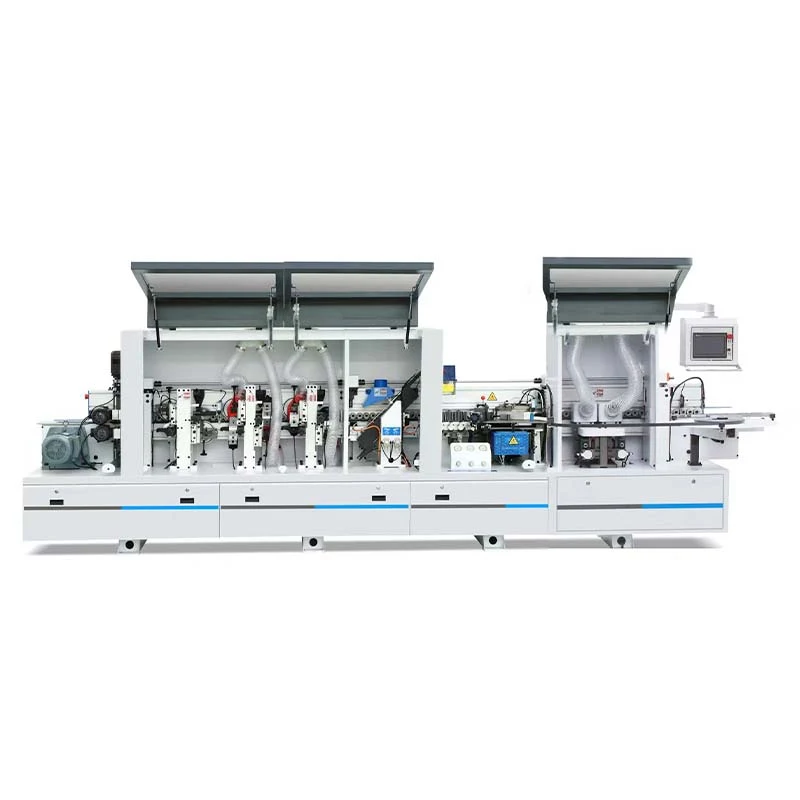

JY-468J
Automatic Edge Banding Machine
Feed speed14-20-23m/min
Panel thickness10-60mm
PANEL EDGE FINISHING

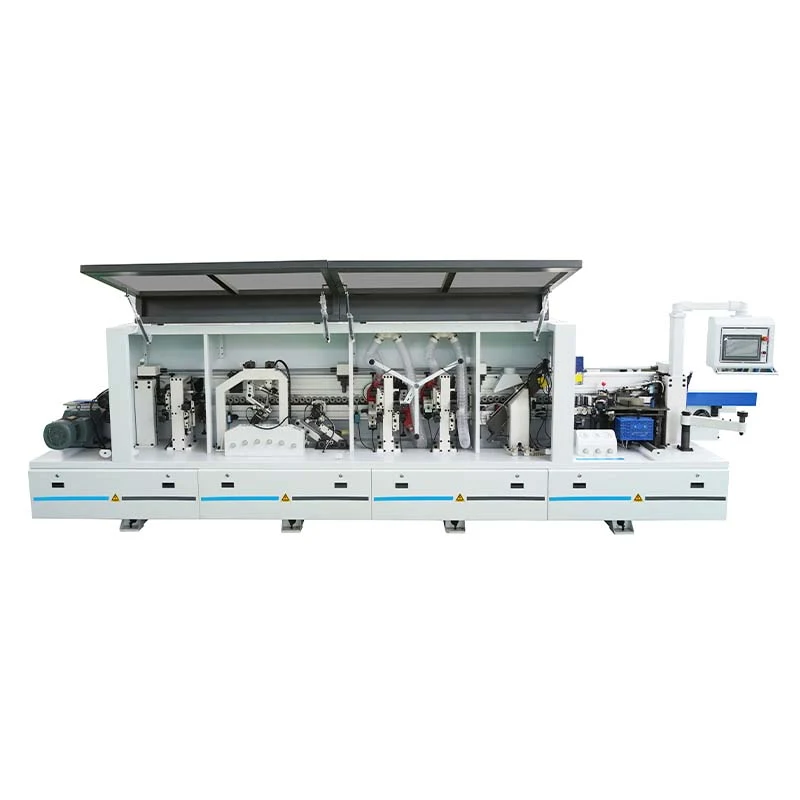

JY-468K
Automatic Edge Banding Machine
Feed speed14-20-23m/min
Panel thickness10-60mm
PANEL EDGE FINISHING

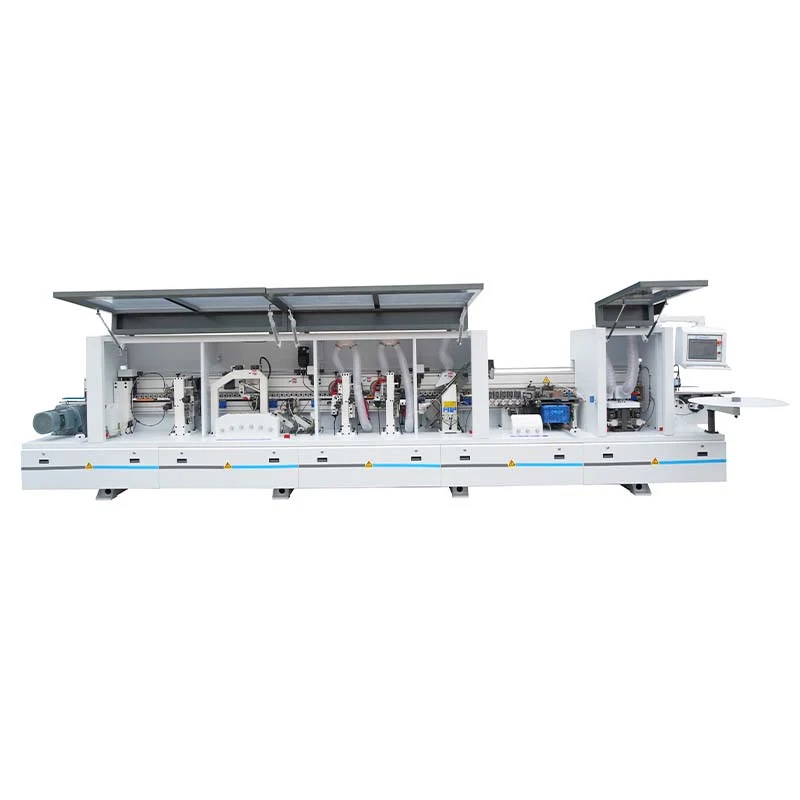

JY-468JK
