MULTIPLE BLADE SAWS
MJZD1300-L

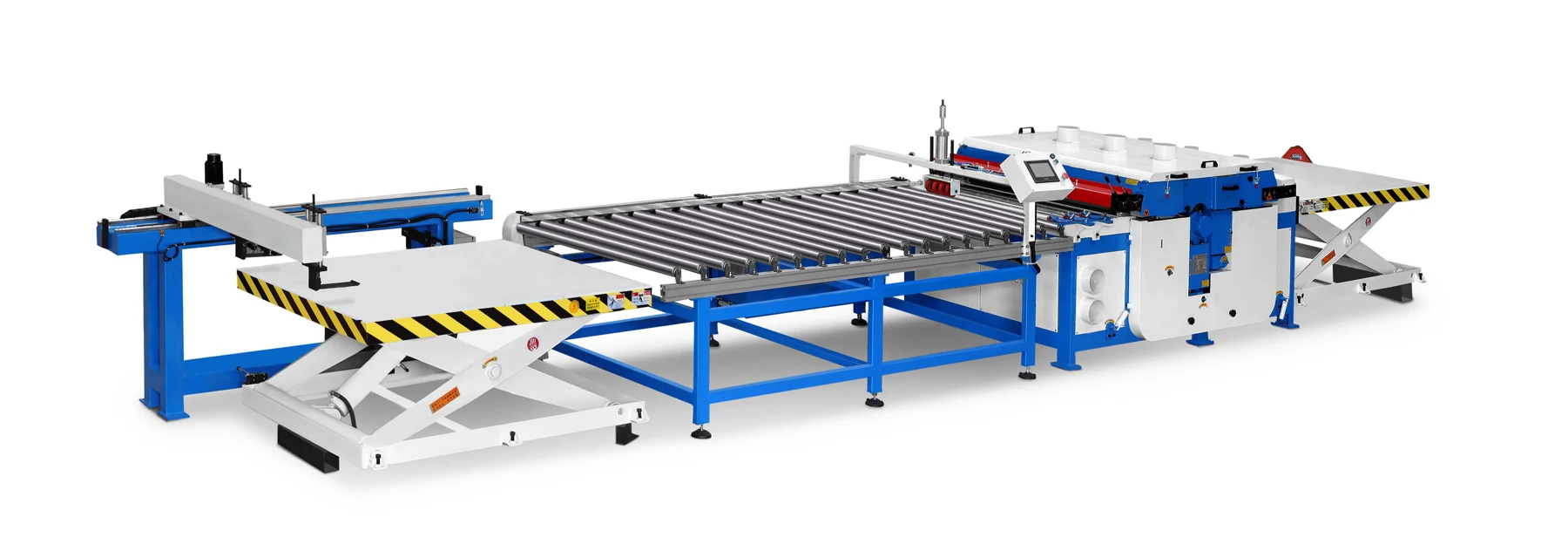

Auto.Infeeding and Outfeeding Multiple Blade Saw Production Line
An integrated multiple blade saw line with automatic infeeding and outfeeding, lifting tables and a 3 m conveying line.
Panel widthMax.: 1220; Min.: 200
Feed speed0-12
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for MJZD1300-L Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications MJZD1300-L
| Width of the Processing Panel(mm) | Max.: 1220; Min.: 200 |
|---|---|
| Thickness of the Processing Panel(mm) | Max.: 60; Min.:5 |
| Spindle Speed (r/min) | 2600 |
| Spindle Motor Power(kw) | 11 - 55 |
| Feeding Motor Power(kw) | 1.5 - 3 |
| Feeding Speed(m/min) | 0-12 |
Included in the production line
1 pc of Multiple blade saw
1 set of the lifting table for in-feeding
1 set of the lifting table for out-feeding
1 set of conveying line with 3M
1 set of the Auto. scraper machine for feeding panel
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
