MULTI-ROW DRILLING MACHINES

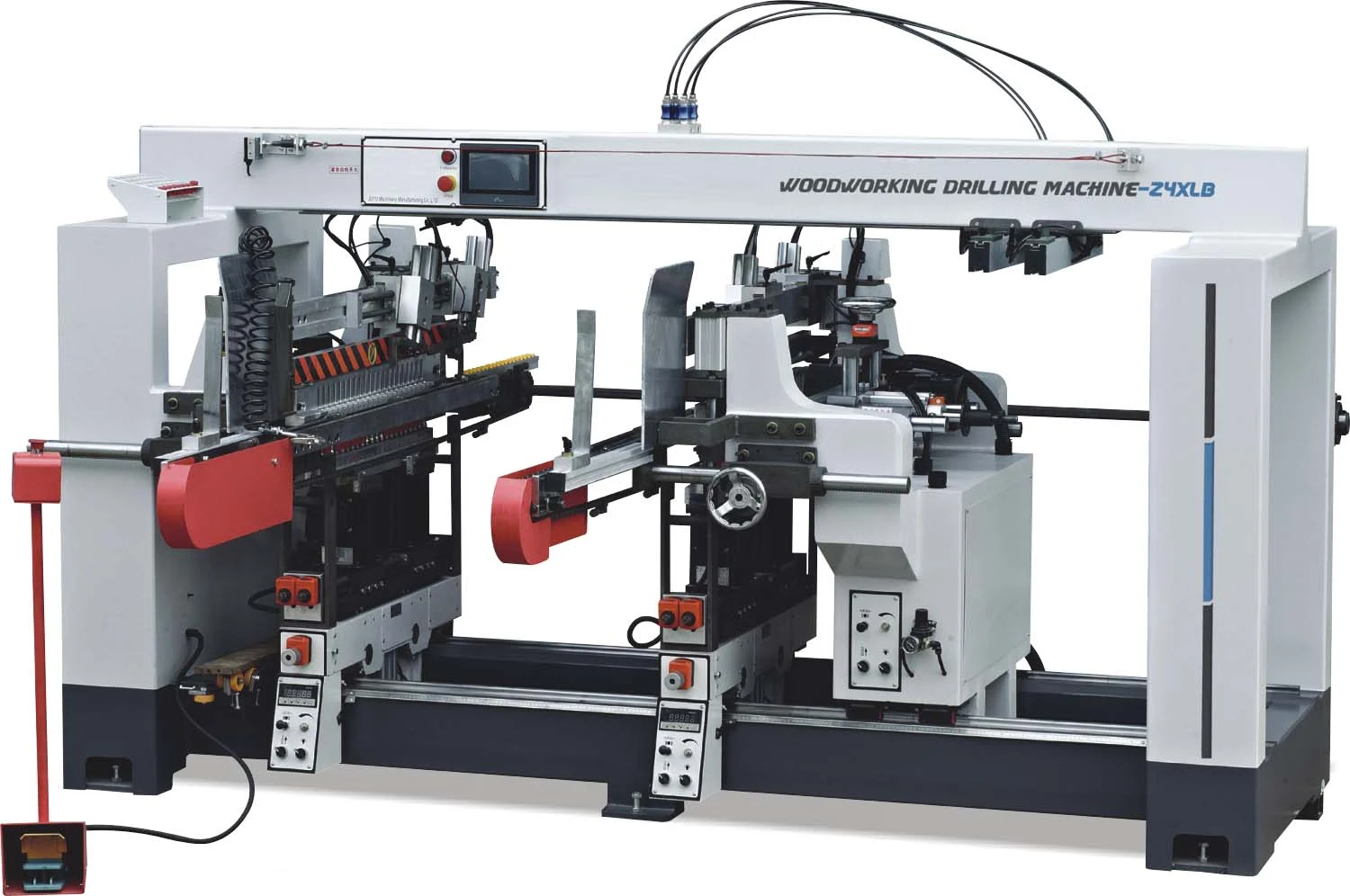

Z4XLB
Automatic Four Rows Drilling Machine

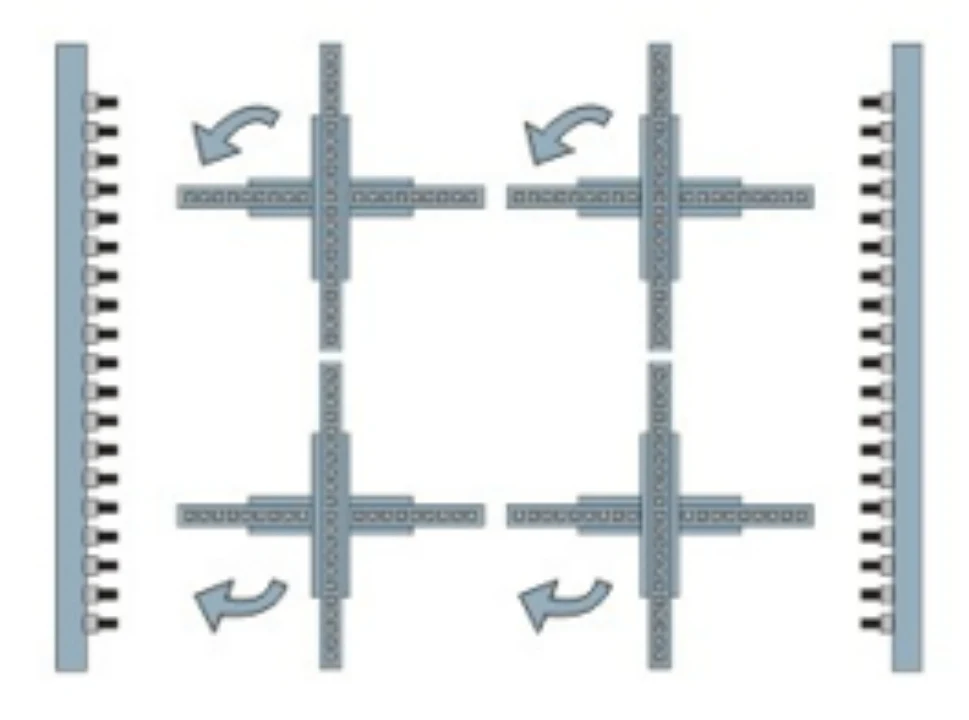

Multi-row drilling equipment with a choice of row configurations for furniture panel production.
Drilling depthMax.:60mm
Motor power10KW
Manufactured by OMAC R&D, manufacturing, sales & service Discuss your configuration with our team
Get a quote for Z4XLB Have a specific material or application? Let’s discuss it. THE DETAILS THAT MATTERKnow your
Know your
next machine.
Review the technical specifications and talk to OMAC about the configuration that suits your production.
Ask about this machineTechnical specifications Z4XLB
| Max.Drilling Diameter | Max.: 35mm(Single Bit)Max.:13mm(Multiple Bit) |
|---|---|
| Max.Drilling Depth | Max.:60mm |
| Drill Assembing Hole Diameter | 10mm |
| Max.Machining Hole Distance | 1500 x 640mm |
| Total Motor Power | 10KW |
| Spindle Speed | 2840rpm |
| Total Number of Rotating Shafts | 22 x 4 = 88pcs |
| Overall Dimension | 3000 x 2800 x 1600mm |
| Packing Size | 3030 x 1800 x 1620mm |
| Weight | 2000kgs |
Specifications are based on the OMAC product catalog. Please confirm the required configuration and operating conditions with OMAC before ordering.
